| SPECIFICATIONS: | |
| Model Number | Linhai 320 EFI |
| ENGINE INFO | |
| Engine type | 4-stroke, single-cylinder, liquid-cooled, EFI |
| Displacement | 275 cc |
| Cooling | Liquid cooled |
| Max horsepower | 22.0 HP @ 7500 rpm |
| Max torque | 23.5 Nm @ 5500 rpm |
| Bore*stroke | 72.5 mm × 66.8 mm (2.85″ × 2.63″) |
| Max speed | 85 km/h (≈ 53 mph) |
| Fuel system | Electronic Fuel Injection (EFI) |
| Ignition | ECU-controlled CDI |
| Starting system | Electric start |
| Battery | 12V, 12Ah |
| Engine oil | SAE 10W-30 (recommended) |
| CHASSIS ETC. | |
| Driveline | Automatic CVT with reverse (H–L–N–R), shaft drive, selectable 2WD/4WD |
| Suspension, front/rear | Independent double A-arm with coil-over shocks / Swingarm with single rear shock |
| Brakes, front/rear | Hydraulic disc / Hydraulic disc |
| Tires, front/rear | Front: 24×8-12 / Rear: 24×11-10 |
| Fuel capacity/type | 14.0 L / Gasoline |
| Weight, G.W./N.W. | 260 kg / 235 kg (573 lb / 518 lb) |
| DIMENSIONS | |
| Wheelbase | 1215 mm (47.8″) |
| OA LWH | 2030 × 1165 × 1250 mm (79.9″ × 45.9″ × 49.2″) |
| Seat Height | 890 mm (35.0″) |
| Min Ground Clearance | 210 mm (8.3″) |

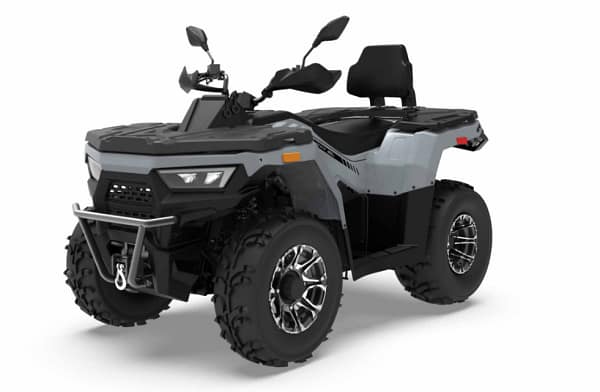

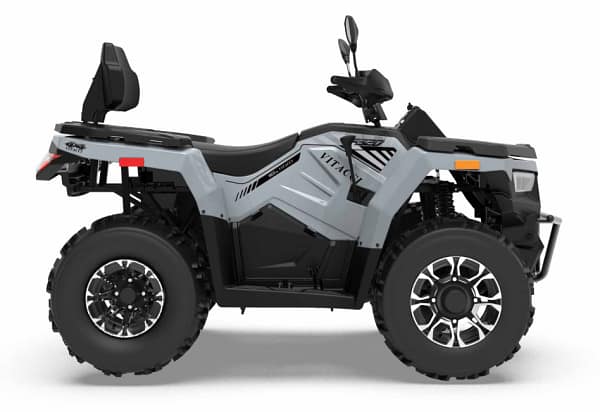

LINHAI 320 EFI
The Linhai 320 EFI is a full‑size utility ATV featuring a liquid‑cooled 320 cc single-cylinder 4‑stroke engine with electronic fuel injection (EFI), delivering 21.8 hp and 23 Nm of torque. With selectable 2WD/4WD and CVT transmission including high/low range and reverse, it’s designed for both farm and trail use. Equipped with electric start, hydraulic disc brakes all around, independent MacPherson front suspension, swing-arm rear suspension, LED lighting, digital LCD display, and utility racks—it’s rugged, versatile, and built for demanding terrain.
