| SPECIFICATIONS: | |
| Model Name | Kayo TT140 – Manual |
| ENGINE INFO | |
| Engine Type | SOHC 4-stroke, single-cylinder, air/oil-cooled |
| Displacement | 140.4 cc |
| Cooling | Air/Oil cooled |
| Max Horsepower | 11 HP @ 8000 rpm |
| Max Torque | 10.2 Nm @ 7500 rpm |
| Bore × Stroke | 56.0 mm × 57.0 mm |
| Max Speed | 50 mph (≈ 80 km/h) |
| Ignition | CDI |
| Starting System | Electric start / Kick start |
| Battery | 12V / 4 Ah |
| Engine Oil | SAE 10W-30 (recommended) |
| CHASSIS ETC. | |
| Driveline | 4-speed manual transmission, chain drive |
| Suspension, Front/Rear | Inverted front forks / Single rear shock |
| Brakes, Front/Rear | Hydraulic disc / Hydraulic disc |
| Tires, Front/Rear | Front: 70/100-17 / Rear: 90/100-14 |
| Fuel Capacity / Type | 5.5 L (1.45 gal) / Gasoline |
| Weight, G.W. / N.W. | 82 kg (181 lb) dry weight |
| Max Load | 75 kg (165 lb) |
| DIMENSIONS | |
| Wheelbase | 1220 mm (48″) |
| OA L × W × H | 1780 × 750 × 1120 mm (70″ × 29.5″ × 44.2″) |
| Seat Height | 854 mm (33.6″) |
| Min Ground Clearance | 289 mm (11.4″) |

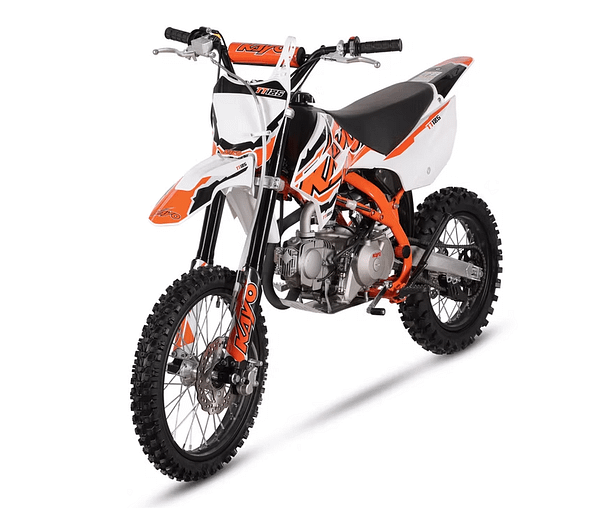

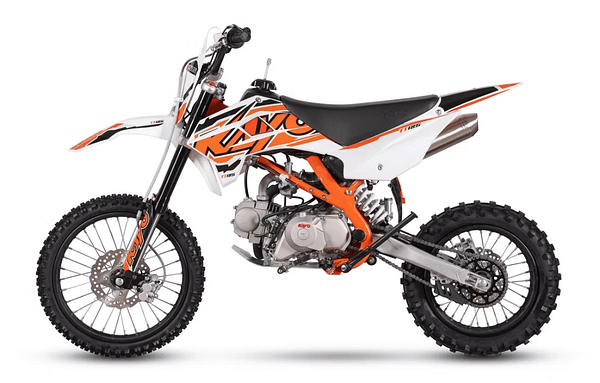

KAYO TT140 – MANUAL
The KAYO TT140 Manual is a high-performance 140cc dirt bike designed for off-road enthusiasts. It features a robust manual transmission, strong suspension, and a durable frame for thrilling and reliable rides on any terrain.
