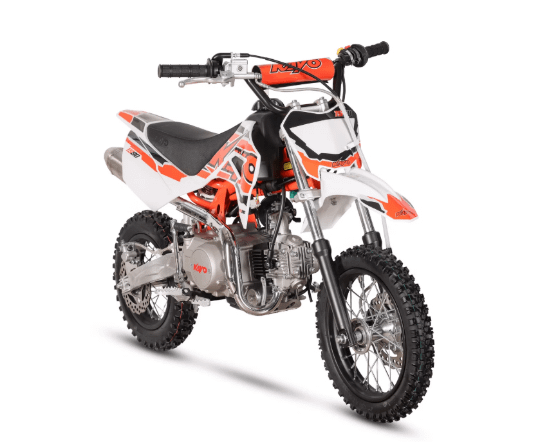

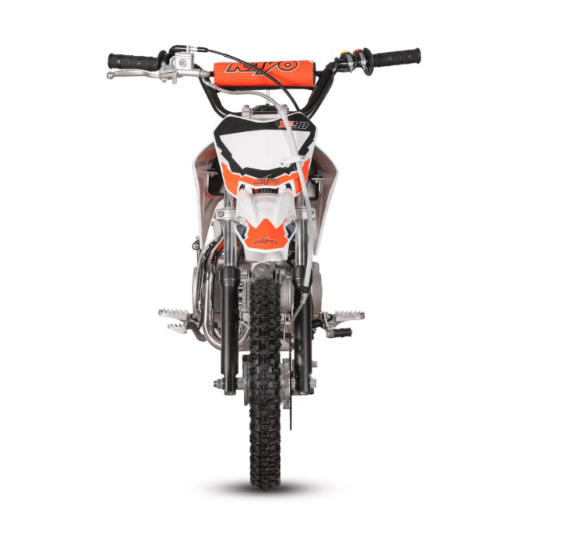

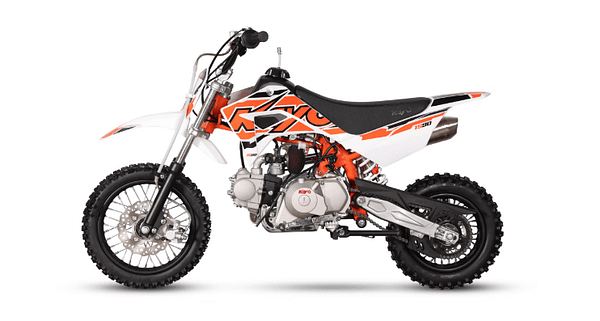

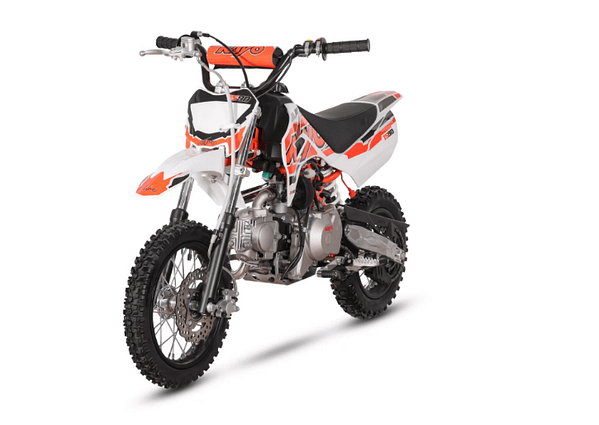

KAYO TS 90 – SEMI AUTOMATIC

Perfect for young riders, the KAYO TS 90 features a 4-stroke engine and semi-automatic transmission, offering a great mix of control and easy handling for beginners and intermediate riders alike.

SPECIFICATIONS:
Model Name Kayo TS 90 – Semi-Automatic
ENGINE INFO
Engine Type SOHC 4-stroke, single-cylinder, air-cooled
Displacement 86 cc
Cooling Air cooled
Max Horsepower 7.0 HP @ 8000 rpm
Max Torque 7.0 Nm @ 6000 rpm
Bore × Stroke N/A
Max Speed 35 mph (≈ 56 km/h)
Ignition CDI (Capacitor Discharge Ignition)
Starting System Electric / Kick start
Battery 12V, 4Ah
Engine Oil SAE 10W-30 (recommended)
CHASSIS ETC.
Driveline Semi-automatic, 4-speed transmission, chain drive
Suspension, Front/Rear Conventional telescopic forks / Single rear shock
Brakes, Front/Rear Disc / Disc
Tires, Front/Rear Front: 2.50-12 / Rear: 3.00-10
Fuel Capacity / Type 3.5 L / Gasoline
Weight, G.W. / N.W. 123.5 lb (≈ 56 kg) dry weight
DIMENSIONS
Wheelbase 41.5″ (≈ 1054 mm)
OA L × W × H 58″ × 26.3″ × 35″ (≈ 1473 × 667 × 889 mm)
Seat Height 24.6″ (≈ 625 mm)
Min Ground Clearance 7″ (≈ 178 mm)
