APOLLO RFZ FALCON X

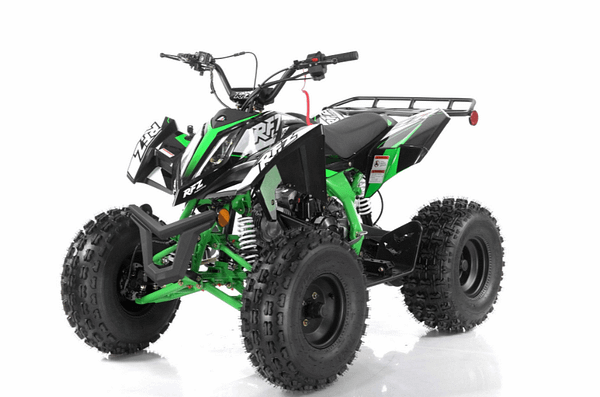

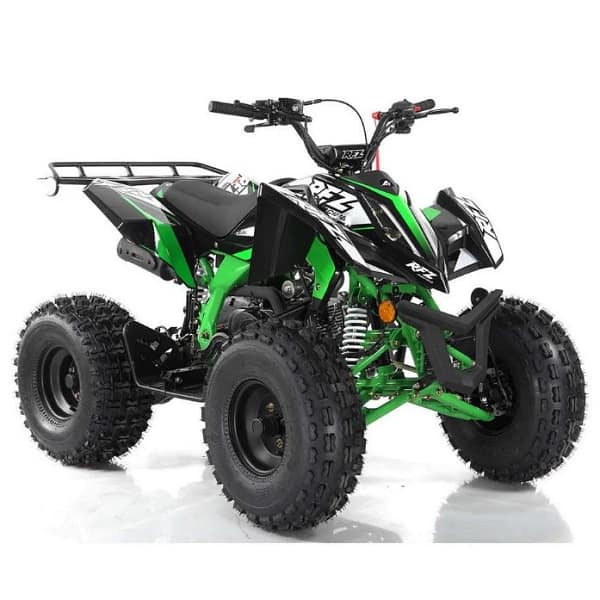

The Apollo RFZ Falcon X is a youth-friendly 119.7 cc ATV featuring a 4‑stroke, air‑cooled single‑cylinder engine producing 5.5 kW at 7,500 rpm. It includes semi‑automatic transmission with reverse, electric start, hydraulic disc brakes front and rear, and dual A‑arm suspension for smooth handling. With a top speed of around 55 km/h (≈ 34 mph) and lightweight build, it’s grounded, stable fun for riders 12 and up.

SPECIFICATIONS:
Model Number Apollo RFZ Falcon X 125cc
ENGINE INFO
Engine type 4-stroke, single-cylinder, air-cooled
Displacement 119.7 cc
Cooling Air cooled
Max horsepower 7.4 HP @ 7500 rpm
Max torque 8.5 Nm @ 5000 rpm
Bore*stroke 52.4 mm × 55.5 mm
Max speed 55 km/h (approx. 34 mph)
Fuel system Carburetor
Ignition CDI (Capacitor Discharge Ignition)
Starting system Electric start
Battery 12V, 5Ah
Engine oil SAE 10W-30 (recommended)
CHASSIS ETC.
Driveline Automatic with reverse
Suspension, front/rear Dual A-arm / Swing-arm
Brakes, front/rear Hydraulic Disc / Hydraulic Disc
Brakes operation Front by hand / Rear by foot pedal
Tires, front/rear Front: 19×7-8, Rear: 18×9.5-8
Fuel capacity/type — / Gasoline
Weight, G.W./N.W. 136 kg / 121 kg (299 lbs / 267 lbs net weight)
DIMENSIONS
Wheelbase 965 mm (38″)
OA L*W*H 1495 mm × 970 mm × 1000 mm (58.8″ × 38.1″ × 39.4″)
Seat Height 760 mm (29.9″)
Min Ground Clearance 125 mm (4.9″)
